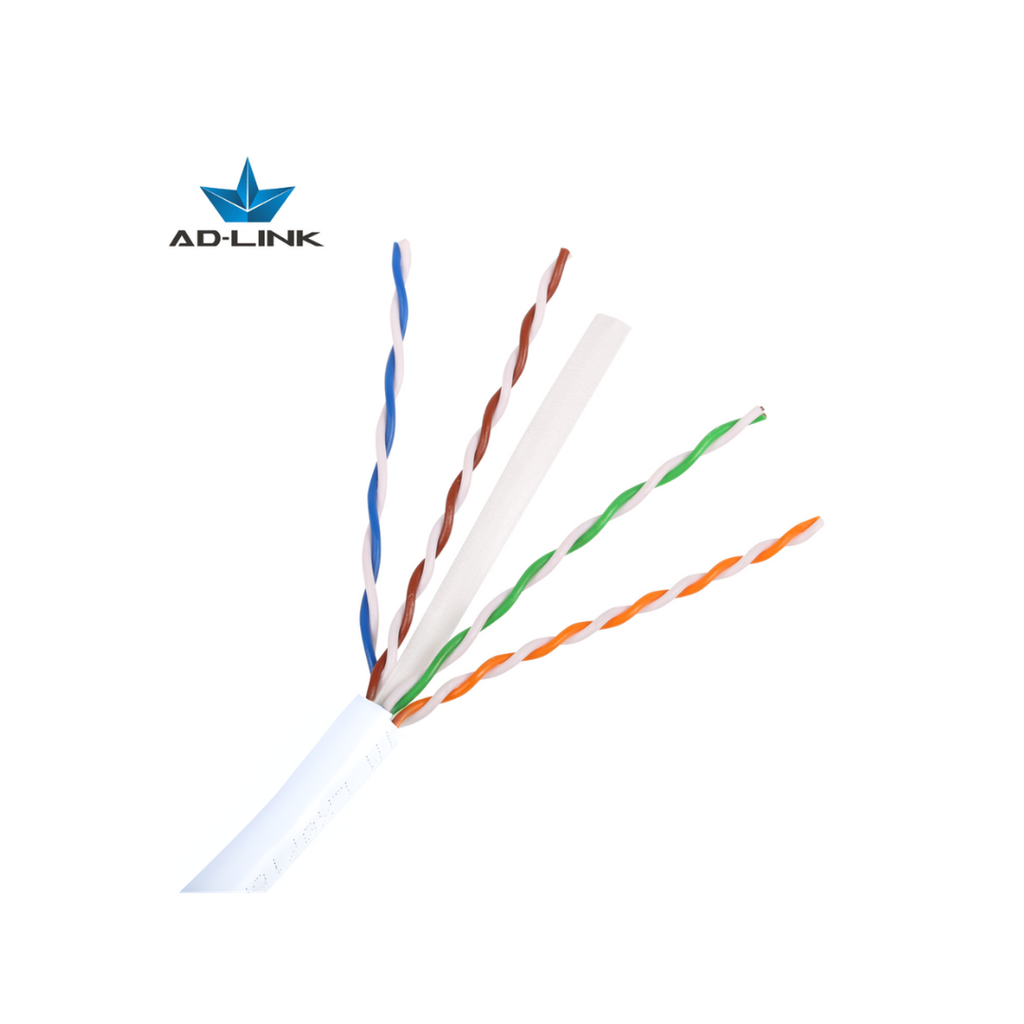

AD-Link Network UTP Cable Cat6e Indoor Roll 305M
$35.00
nner Conductor thickness : 0.5mm 8CCA
Conductor size : 24AWG
Conductor Material : CCA
No. of Conductor : 4P
Insulator Material : HDPE
Jacket : PVC
Shield : Unshielded twisted pairs
Filler : PE CROSS
Insulation Thickness : 0.2mm
Jacket Thickness : 0.92-1.02mm
Stretching Resistance : (max) 250N
Impedance : 100±15%î© at 1~250MHz
DC Resistance Imbalance : 2.50%
Working Capacitance(max) : 5.4nf/100m
Insulation Resistance : 10000Mî©.km
Operating Temperature : ~40Â ºC – +70 Â ºC
