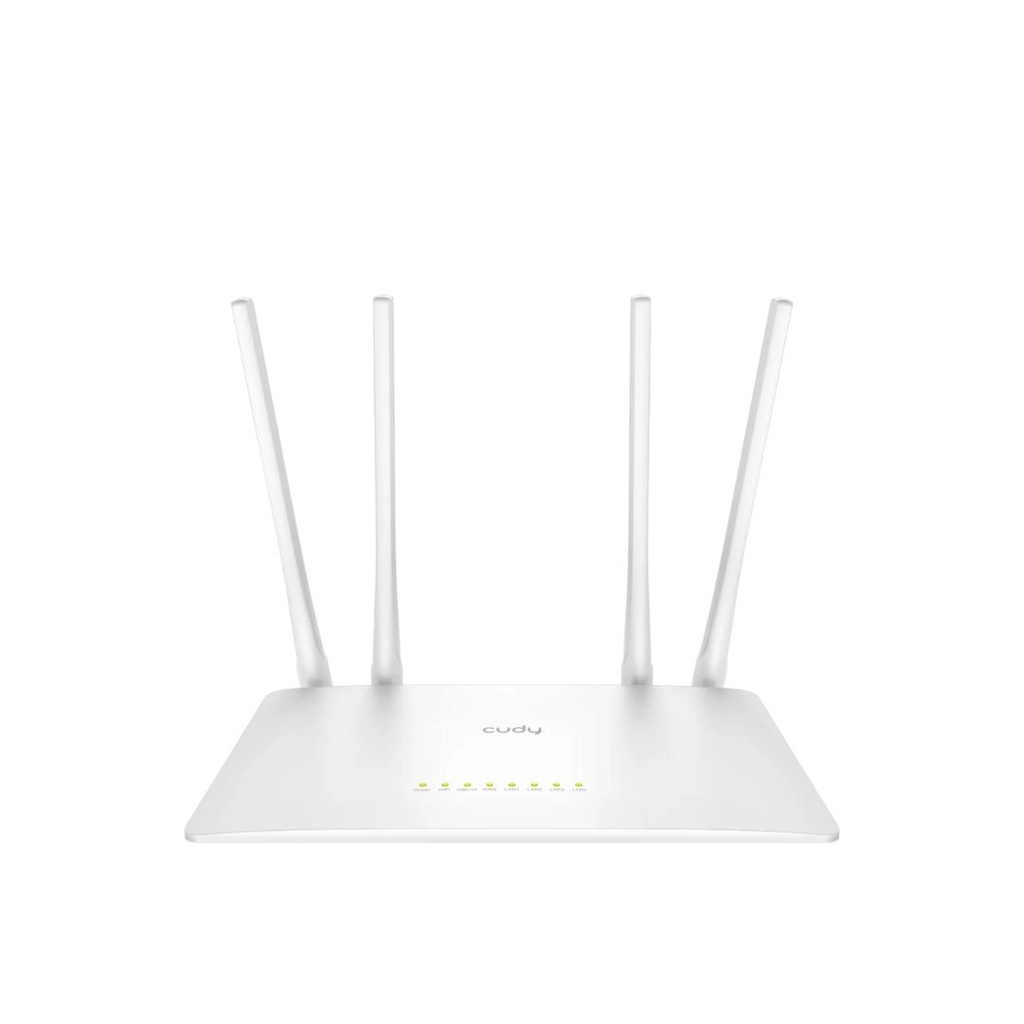

Cudy 300 Mbps Multi-Mode Wi-Fi Router WR300S

$20.00

A WiFi router with five Ethernet ports and four antennas built for long-range coverage allows smooth video playback and a maximum of 100 Mbps internet access, featuring Cudy Mesh and local app control.
300 Mbps Wi-Fi 1
- 5× Fast Ethernet Ports
- Covers 90 m² (950 ft²) 2
- Router/AP/RE/WISP/Client/Mesh Modes
- VPN Client of WireGuard, PPTP, L2TP
- Cudy App

Hardware Specs :


Model Version	WR300S 1.0

CPU	Chipset	MT7628
	CPU Details	580 MHz Single-Core, MIPS24KEC

Memory/Storage	Flash/ROM	8 MB (64 Mbit ) NOR
	DDR/RAM	64 MB (512 Mbit) DDR2

Wireless	2.4 GHz Wi-Fi Speed	300 Mbps
	2.4 GHz Wi-Fi Streams	2T2R (2×2 MIMO)
	Wi-Fi Antennas	4× Fixed
	FEM or PA/LNA	2.4 GHz: 2× Internal
	Range Performance	Max: 170 m (558 ft) Indoor WiFi range varies depending on the layout and wall materials. See Wall Performance spec for placement suggestions.
	Wall Performance	Two wooden walls with thickness < 10 cm (4'') One concrete wall with thickness < 20 cm (7'')

Interfaces	10/100 Mbps RJ45 Ports	5
	Ethernet Notes	1× WAN port, the rest are LAN ports
	LED	System Wi-Fi Internet WAN LAN
	Physical Buttons	Reset/WPS Button
	Power Input	DC Jack

Power	Power Methods	DC
	DC	5V 1A
	Power Adapter	Input: 100 ~ 240 V, 50/60 Hz AC Output: 5V 1A DC

Reliability	Environment	Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉) Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 95% non-condensing

Certifications	FCC, CE

Mechanical	Installation	Desktop Wall-mount
	Dimension	220×135×30 mm 8.66×5.31×1.18 inches
	Product Weight	249.8 g (8.81 oz.)

Package Content	WR300S Power Adapter Ethernet Cable Installation Guide

Ordering Information	Retail Package Weight	EU: 612.5 g (21.61 oz.)
	Retail Package Dimension	290×250×64 mm 11.42×9.84×2.52 inches
	Units per Carton	16
	Carton Dimension	53.8×51.6×31.3 cm 21.18×20.31×12.32 inches
	Carton Gross Weight	EU: 10.9 kg (24.03 lbs)
	Carton Net Weight	EU: 9.8 kg (21.61 lbs)

Software Specs:


Model Version	WR300S 1.0

Wireless	Wi-Fi Standards	Wi-Fi 4
	Max Wi-Fi Modulation	64-QAM
	Max Capacity	64
	Recommended Client Upper Limit	30
	Max Wi-Fi Channel Width	40 MHz
	Wi-Fi Security	WPA/WPA2/WPA3
	Guest Network	2.4 GHz
	WPS	True

General	Operation Modes	Wi-Fi Router Access Point Range Extender WISP Client
	Mesh	Cudy Mesh
	Mesh Backhaul	Wireless Backhaul Wired Backhaul
	WAN Mode	DHCP Static IP PPPOE PPTP L2TP
	Internet Failover Sequence	WAN WISP

Network	QoS	Per-User Rate Limiting
	DHCP	Address Reservation DHCP Client List Server
	IP Versions	IPv4/IPv6
	IPv6 Protocols	Relay Dynamic (SLAAC/DHCPv6) Static (Fixed IP) Passthrough 464XLAT MAP-E DS-Lite
	IPTV/VLAN	Bridge Tag VLAN VoIP VLAN IPTV VLAN
	TTL Customization	Extend Spoof Custom
	IGMP	IGMP Proxy IGMP Snooping
	Forwarding	Port Forwarding Port Triggering UPnP DMZ
	Firewall	SPI Firewall DoS Protection Block PING
	Application Layer Gateway	IPSec Passthrough L2TP Passthrough PPTP Passthrough FTP Passthrough TFTP Passthrough H323 Passthrough SIP Passthrough RTSP Passthrough

Utilities	VPN Client	Wireguard PPTP L2TP
	DNS Options	DNS over TLS Manual DNS Rebind Protection Override Clients' DNS
	DNS over TLS Providers	Cloudflare Google Quad9 Custom
	Wake on LAN	True
	Online Detection	True

Management	All Devices Management	Wi-Fi Time Schedule MAC Filter IP/MAC Binding
	Per-Devices Management	Internet On/Off VPN On/Off Online Time Schedule Device Rename
	Content Management	Domain Filter IP Filter

System	LED Control	True
	Local Control Method	Config Web Page App Control
	Remote Control Method	Config Page via HTTPS TR069/TR098/TR111/TR181
	Firmware Upgrade	Local Update
	Reliability	Timed Reboot Backup and Restore
	Diagnostic Tools	Diagnosis Ping Traceroute NSLookup System Log
	Languages	English Bengali Catalan Czech German Greek Spanish French Hebrew Croatian Hungarian Italian Japanese Khmer Korean Dutch Norwegian Polish Portuguese Romanian Russian Slovak Swedish Thai Turkish Ukrainian Vietnamese Simplified Chinese Traditional Chinese

Dashboard	Panel	Internet Status Mesh Status Devices Management WAN Status LAN Status WISP Status Wi-Fi Status VPN Status DHCP Server Status System Version
	Charts	Mesh Topology Internet Speed WISP Speed Wi-Fi Speed
